CrowdStrike Falcon AIDR hero Openlayer connects to CrowdStrike Falcon AIDR and pulls the prompts, tool calls, and model usage of AI coding agents — Claude Code, Cursor, Codex, and others — running on machines with the Falcon sensor. Each agent product lands in its own Openlayer project, where you can run tests and review real usage. Nothing is installed on developer machines beyond the Falcon sensor you already run. This is the right integration when you govern AI coding agents across your endpoints and already use Falcon AIDR. It covers every agent product Falcon reports, whatever vendor plan each developer is on. Other integrations capture some of the same activity from a different angle:
  • Claude Code exports OpenTelemetry traces from Claude Code itself, configured through Claude managed settings. Use it when you need Claude Code’s model requests and tool runs step by step, not only prompts.
  • Claude Compliance and OpenAI Compliance read transcripts, including assistant replies, from the vendor’s compliance API. They require that vendor’s enterprise plan.
All access is read-only. The Falcon API client needs only the AIDR read scope, and Openlayer never changes anything in your Falcon tenant.

​
How it works

Once connected, Openlayer reads AIDR events from the Falcon API and turns them into inference data.
  1. Discovers agent products. Falcon tags every prompt and agent session with the product that produced it, such as Claude Code or Codex. Each product Falcon reports appears under Products.
  2. Gives each product its own project. By default, a newly discovered product is enabled into a new CrowdStrike · <product> project, so each agent can be governed separately. Products that are not enabled do not sync.
  3. Pulls on a schedule. Openlayer syncs every 10 minutes by default.
  4. Writes prompts first, activity later. Each prompt becomes a row as soon as Openlayer sees it. Tool calls and model usage follow in an Agent activity row once the session goes idle.

​
Prerequisites

  • A CrowdStrike Falcon tenant with the Falcon AIDR module, and the Falcon sensor on the machines where developers run AI agents.
  • AIDR API access turned on for the tenant. When it is off, Falcon rejects every AIDR request with 403, even for an API client with the right scope.
  • A Falcon API client with the AIDR read scope, created below.
  • An Openlayer workspace where you are an admin. Connecting, changing settings, enabling, disabling, or moving products, and disconnecting are admin-only. Members can view products and their projects.

​
Create the Falcon API client

In the Falcon console, go to Support and resources → API clients and keys and create an API client with only the Aidr Events: Read scope. Copy the client ID and the secret. Falcon shows the secret only once. Also note your tenant’s region: the Falcon cloud your console runs on. For example, falcon.crowdstrike.com is US-1 and falcon.eu-1.crowdstrike.com is EU-1. Openlayer supports US-1, US-2, US-3, EU-1, US-GOV-1, and US-GOV-2. The CrowdStrike Developer Center covers API clients in general, and FalconPy is a quick way to check a client’s credentials and region outside Openlayer.

​
Setup guide

​
Step 1: Connect

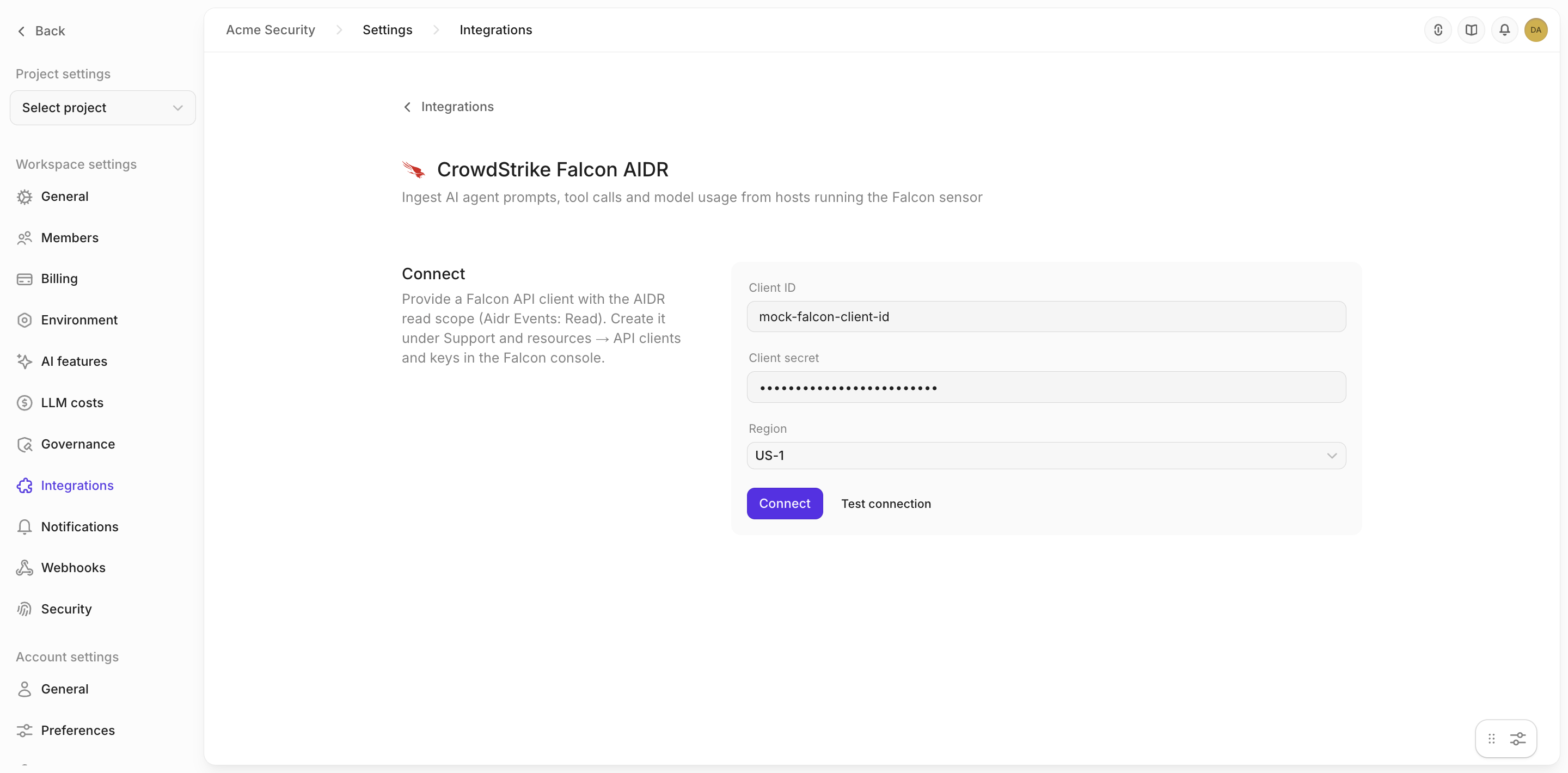

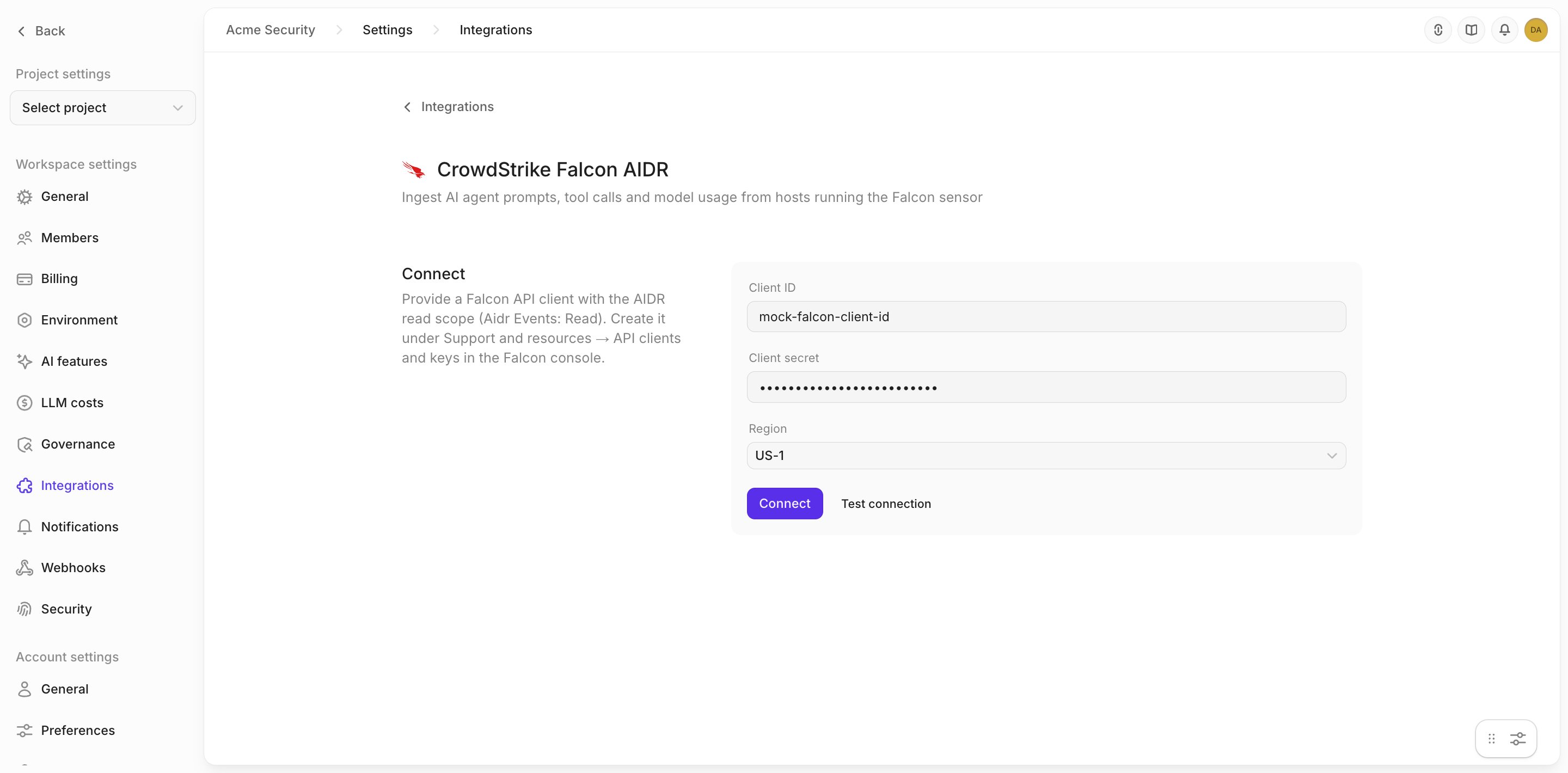

In Openlayer, go to Settings → Integrations and open CrowdStrike Falcon AIDR in the AI Usage & Security section. Enter the Client ID, Client secret, and Region (US-1 by default). Click Test connection to check the credentials without saving them, then click Connect. The CrowdStrike Falcon AIDR connect form in Openlayer, with a client ID, a masked client secret, Region set to US-1, and the Connect and Test connection buttons Openlayer checks the credentials against Falcon before storing them, and encrypts the secret at rest. The stored secret is never returned by later requests. If Falcon rejects the credentials, the form shows Falcon’s reason and nothing is saved. On success, the first sync starts and products appear shortly.

​
Step 2: Review the sync settings

Open the General tab. Under Settings:
  • Periodic sync pulls new prompts and agent activity. Turn it off to pause syncing without disconnecting, or click Sync now to queue a sync immediately.
  • Sync frequency is Every 10 minutes, Every 30 minutes, or Every hour.
  • Create a project for new products is on by default. See Products and projects.

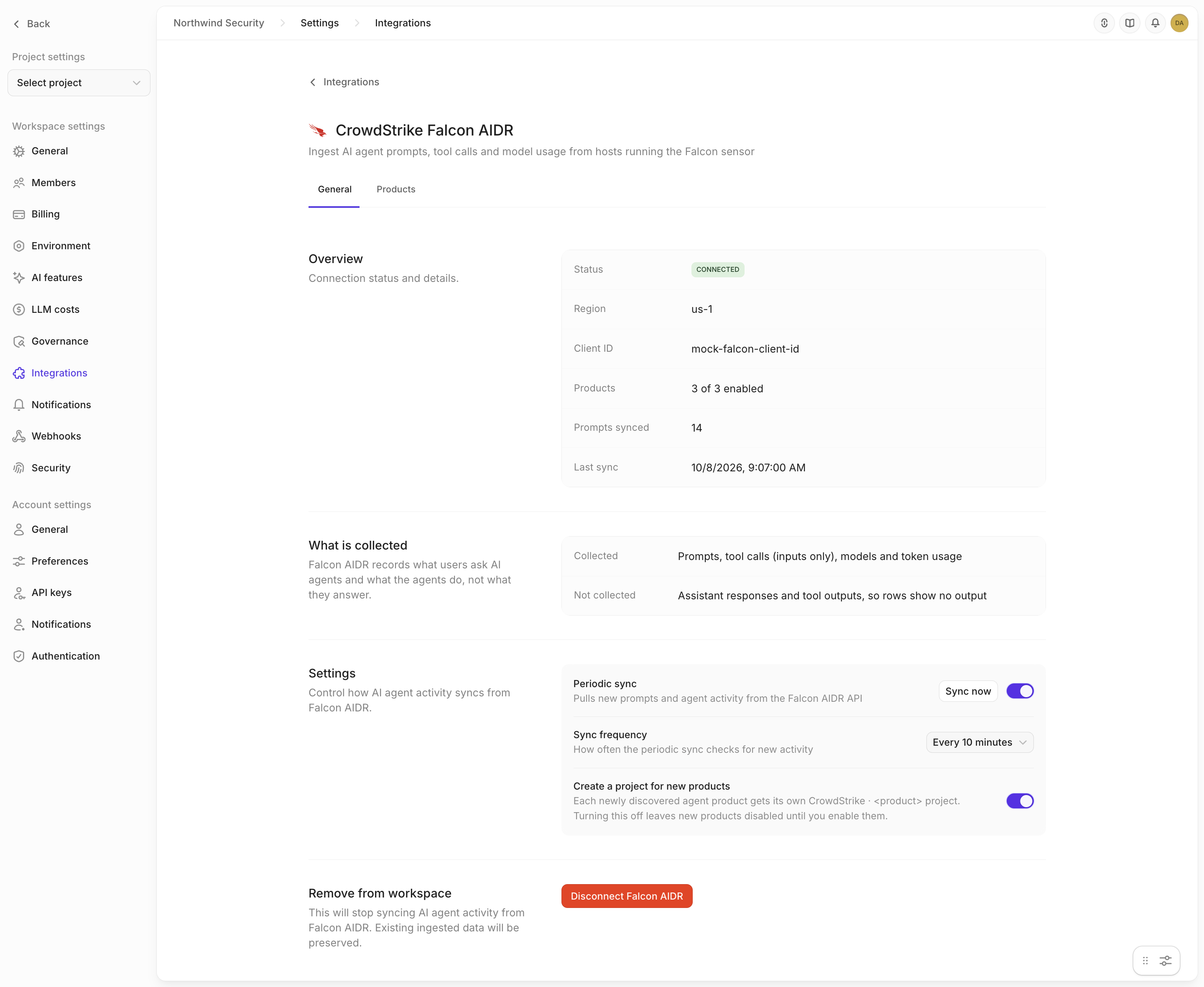

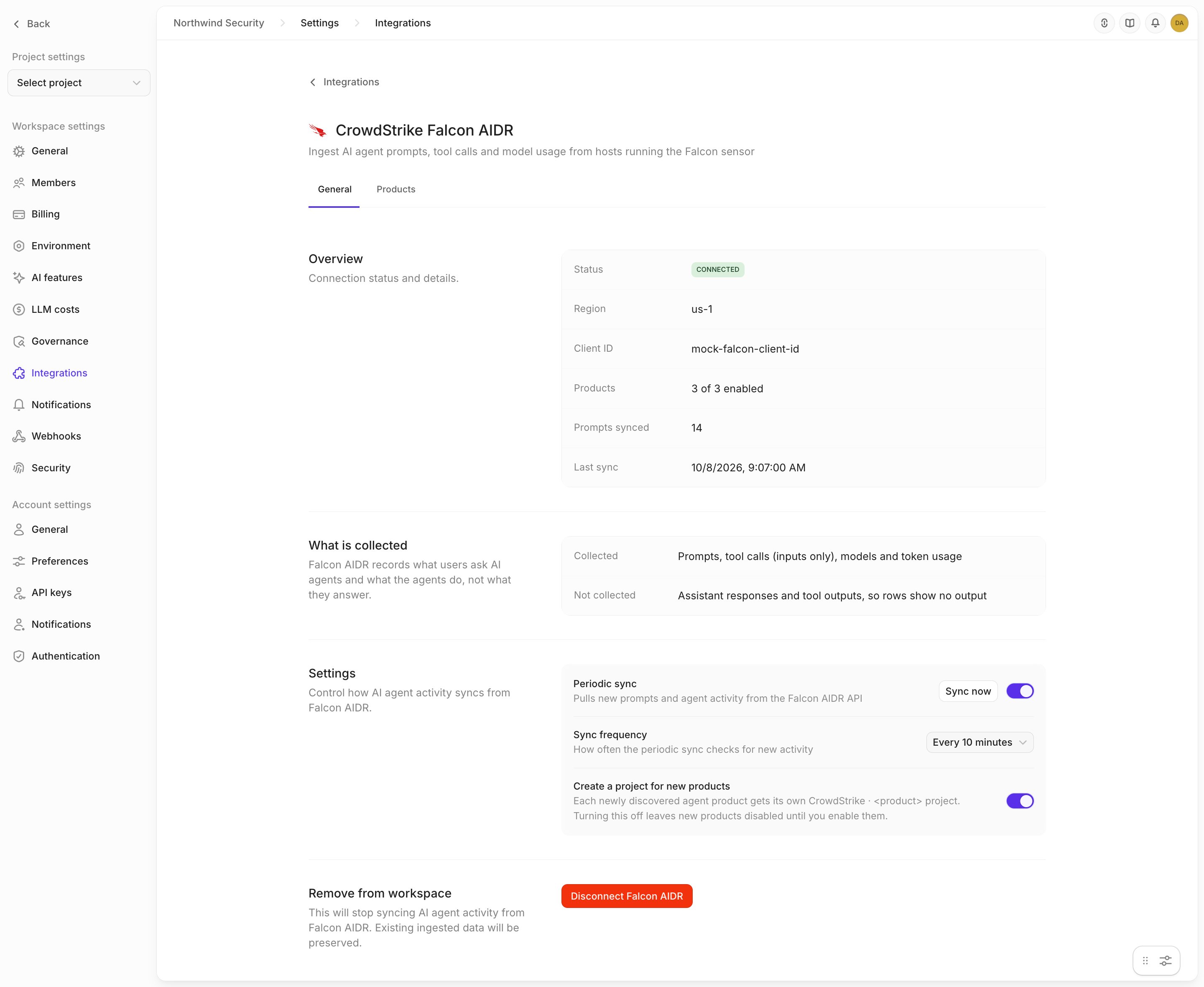

The Overview on the same tab reports the connection’s status, how many products are enabled, prompts synced, last sync, and the last error. A status of no products enabled means nothing syncs: no product is enabled and new products are not enabled automatically. The CrowdStrike Falcon AIDR General tab, with the connection overview (3 of 3 products enabled) and the Settings section: Periodic sync with Sync now, Sync frequency set to Every 10 minutes, and Create a project for new products turned on

​
Products and projects

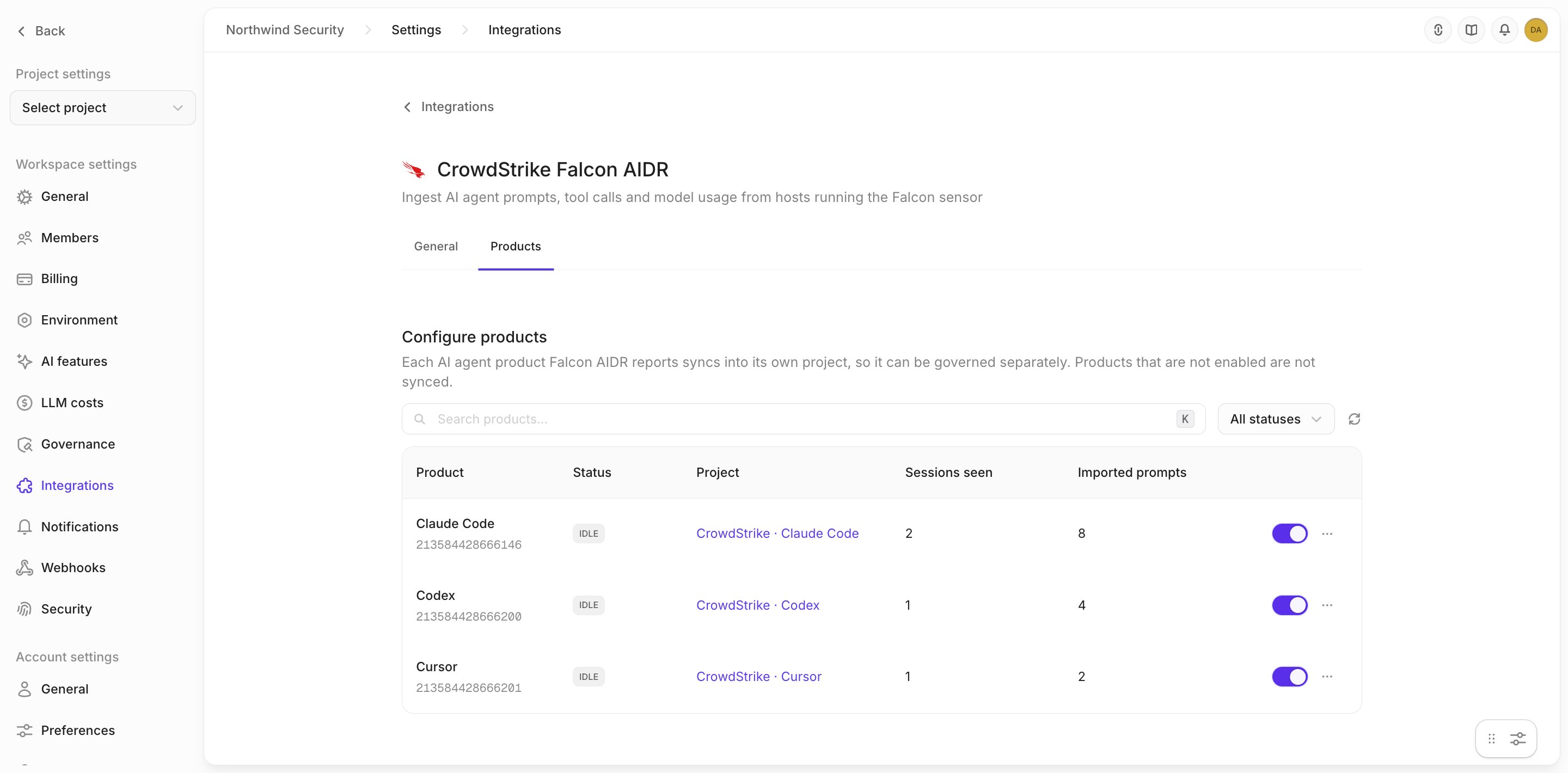

The Products tab lists every AI agent product Falcon AIDR has reported, with its name and Falcon’s numeric product tag (for example, Claude Code and 213584428666146), status, project, sessions seen, and imported prompts. A product appears after a sync once Falcon reports activity for it. The Products tab, listing Claude Code, Codex, and Cursor, each idle and syncing into its own CrowdStrike · product project, with sessions seen, imported prompts, and the enable switch Create a project for new products decides what happens to a product the first time Openlayer sees it:
  • On (the default) — Openlayer enables the product into a new CrowdStrike · <product> project and pipeline. If a plan limit or a missing permission blocks the project, the product stays disabled and shows the reason.
  • Off — the product stays disabled until an admin enables it.
To enable a product by hand, turn on its switch and choose Create new project or Map to existing project. An existing pipeline must use Openlayer’s default storage. Pipelines on a BigQuery or Snowflake backend cannot receive these rows. An enabled product’s menu has View project, Change project, and Disable:
  • Change project sends the product’s new rows to another project and pipeline. Rows already written stay in the previous project; they are not moved or copied.
  • Disable stops syncing the product. Its project, pipeline, and existing data are kept.
  • Re-enabling a disabled product opens on the project it already had, so it does not create a second project. The product shows backfilling while Openlayer reads its sessions from the last 7 days, then returns to idle and syncs new activity.
Falcon AIDR keeps 7 days of activity, so that is as far back as any backfill reaches. Activity from a product’s disabled period that is older than 7 days when you re-enable it is never imported.

​
What lands in Openlayer

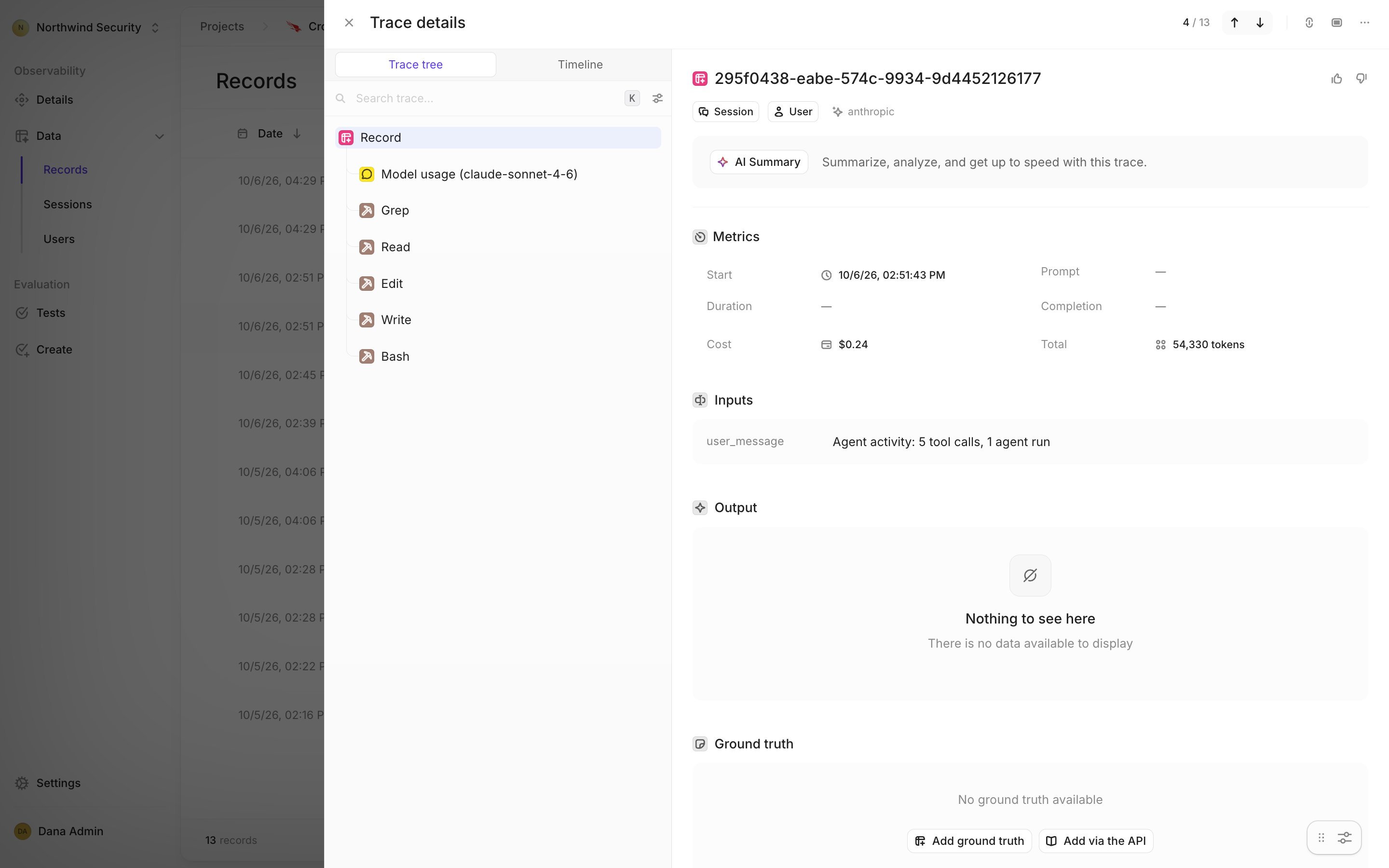

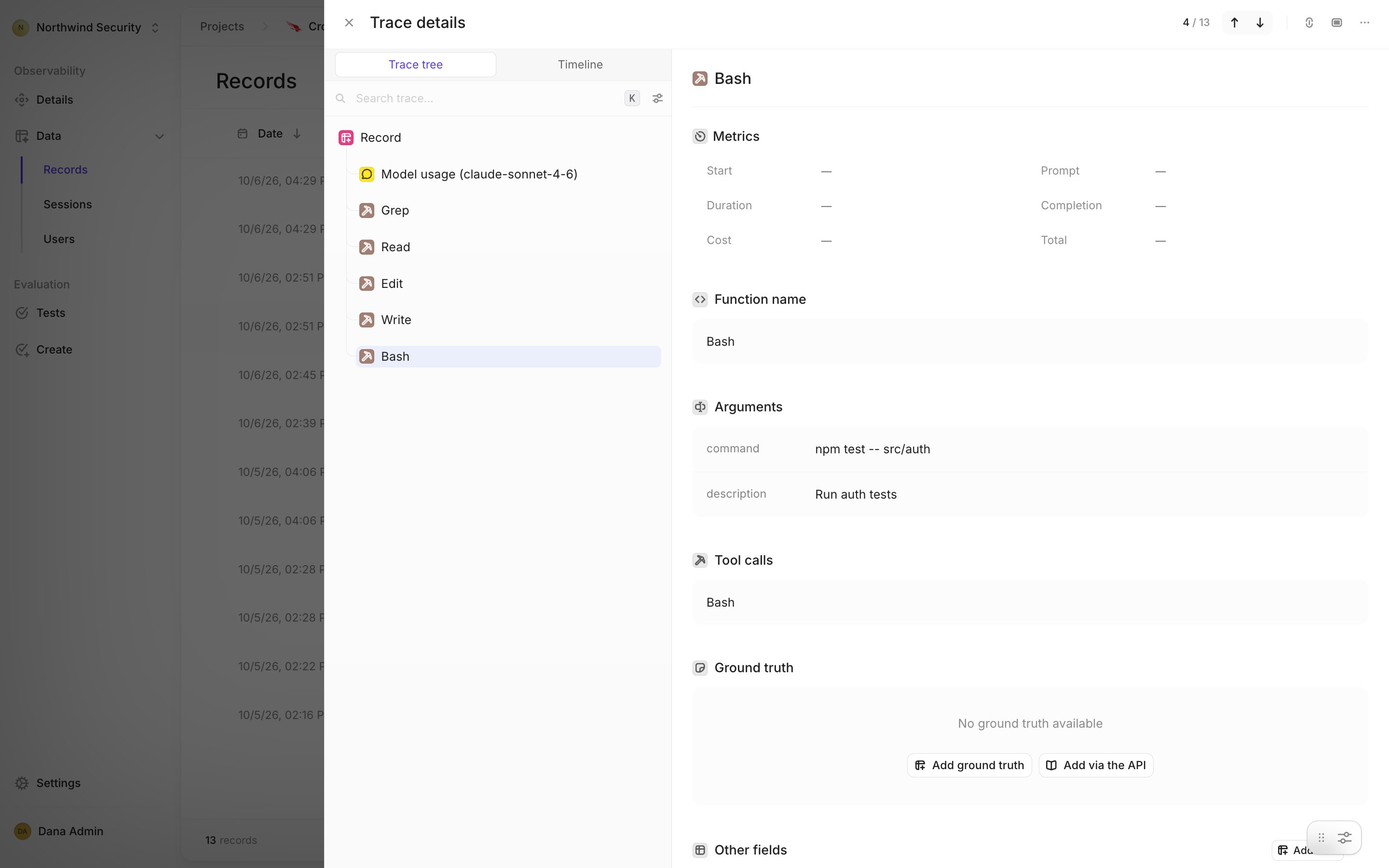

Falcon AIDR records what people ask AI agents and what the agents do, not what the agents answer. It returns prompts, tool-call inputs, models, and token counts. It does not return assistant responses or tool output, so every row’s output is empty. Openlayer writes two kinds of rows into the product’s pipeline: A Claude Code Agent activity row in Openlayer: a Model usage step for claude-sonnet-4-6 and one step per tool call (Grep, Read, Edit, Write, Bash), with total tokens and an estimated cost Selecting a tool step shows the inputs Falcon captured. Here, the Bash command and the agent’s stated purpose: A Bash tool step in an Agent activity trace, with the captured command (npm test -- src/auth) and description arguments A few behaviors are not obvious from the trace:
  • Tool calls are not attached to prompts. Falcon gives tool calls no timestamp, so Openlayer cannot tell which prompt caused them. They are grouped into the session’s activity row instead.
  • Resumed sessions get a follow-up row. If a session picks up again after its activity row is written, the new calls land in another Agent activity row. Rows are never rewritten.
  • Sessions are preserved. Each AIDR agent session becomes one Openlayer session.
  • Users are attributed only when unambiguous. The user ID is the OS user who ran the agent, and only when exactly one OS user ran agents on that host. Otherwise the user is anonymous.
  • Cost is estimated. Openlayer estimates cost on the model-usage step from the model and token counts.
  • Long values are cut. A prompt or tool input longer than 50,000 characters ends with … [truncated].
Each row also carries these columns:

​
Evaluating the ingested data

Once rows are flowing, evaluate AI agent usage the same way you evaluate application traffic:
  • Create tests on prompts and token usage. Tests that score a response have nothing to score, because outputs are empty.
  • Detect PII in the prompts people send to coding agents
  • Use governance frameworks to evidence AI-usage controls with real traffic

​
Disconnecting

On the General tab, click Disconnect Falcon AIDR and confirm Remove Falcon AIDR. Disconnecting stops syncing and deletes the stored API client. Projects, pipelines, and data already ingested are kept. Delete the API client in the Falcon console afterwards if nothing else uses it.

​
Troubleshooting
